Blackmagic ATEM 1 M/E Constellation HD
10-input HD/SD-SDI production switcher with 4 keyers, multiviewer, audio mixer, and built-in streaming.
Blackmagic Design — ATEM 1 M/E Constellation HD
What it is

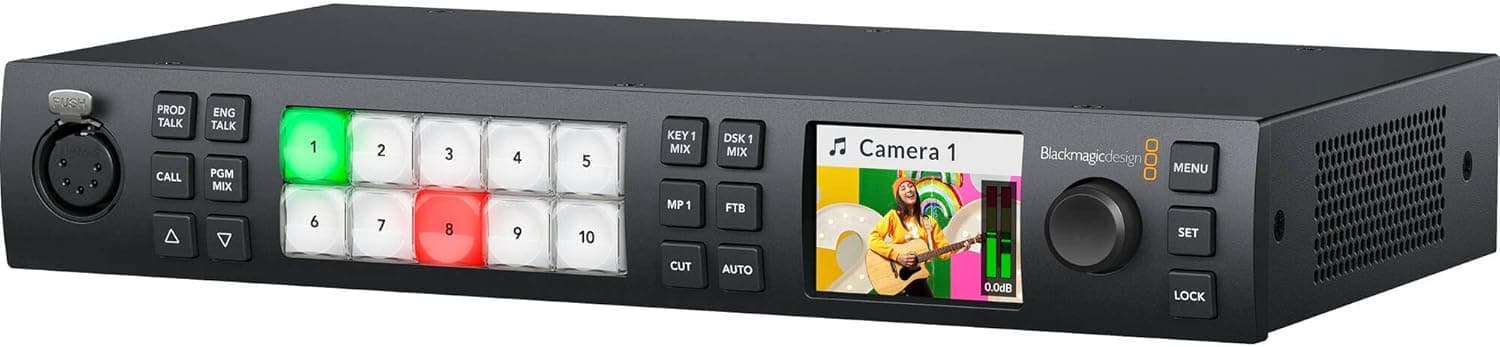

The Constellation HD is Blackmagic's modern take on a full-featured 1 M/E switcher: 10 SDI inputs, 4 upstream keyers, downstream key, DVE, audio mixer with 12-band EQ on every input, an integrated multiviewer, and built-in H.264 streaming and recording. It runs from the front panel or via the free ATEM Software Control panel over Ethernet.
Who it's for
Mid-budget broadcast, corporate AV, and house-of-worship installs that need real production polish without stepping up to the price (or complexity) of a Smart Videohub + dedicated switcher rig. Also a strong choice for road kits where you want one rack-mount unit instead of a chassis switcher with cards.
Spec highlights

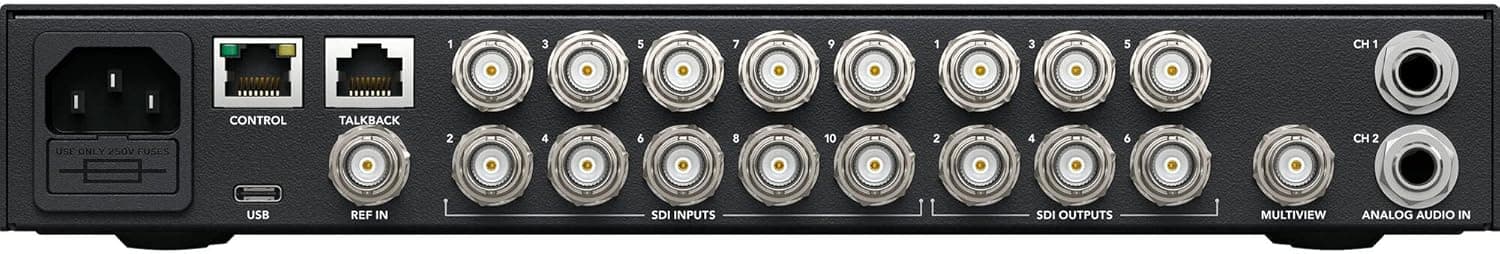

- 10× 3G-SDI inputs with re-sync (any source, any frame rate up to 1080p60)
- 4 upstream keyers (chroma/luma/DVE), 1 downstream
- 2 stinger transitions, 2 media players
- Built-in multiviewer (up to 16 windows), assignable
- H.264 streaming direct to YouTube/Twitch/Facebook + USB-C recording
- Talkback over SDI, tally to 8 destinations
- 1RU, ATEM hardware panels supported via Ethernet
Real-world notes
The audio mixer is genuinely useful — full EQ, dynamics, and 6-band parametric on every input means you can run small events without a separate console. The streaming engine is solid; it'll keep up with 1080p60 to a single platform without complaint, and the USB-C ISO recording captures all sources to a connected SSD if you want to edit later.
The hardware panel is sold separately. The software control panel works fine for one operator, but if you have a dedicated TD they'll want the physical panel within an hour of trying to switch a fast-paced show with a mouse.
Latency is low (sub-frame), and re-sync on every input means you don't need external genlock for cameras at mixed frame rates.
Bottom line
For the price, the Constellation HD punches well above its weight. It's the right answer if you're outgrowing an ATEM Mini Extreme but can't justify a Constellation 4K. Pair it with the ATEM 1 M/E Advanced panel and you've got a rig that handles 90% of corporate and live-event work.
Pros
- +10 SDI inputs with per-input re-sync — no external genlock needed
- +Full audio mixer with EQ and dynamics on every channel
- +Direct H.264 streaming + USB-C ISO recording built in
- +ATEM Software Control is mature and free
- +Talkback and tally over SDI — clean cabling
Cons
- −Hardware control panel sold separately (and it's not cheap)
- −Front-panel UI is workable but software/hardware control is much better
- −No HDMI inputs — bring HDMI→SDI converters for laptops
